SelfPOS200

Specification Drivers Brochure
Details Parameter

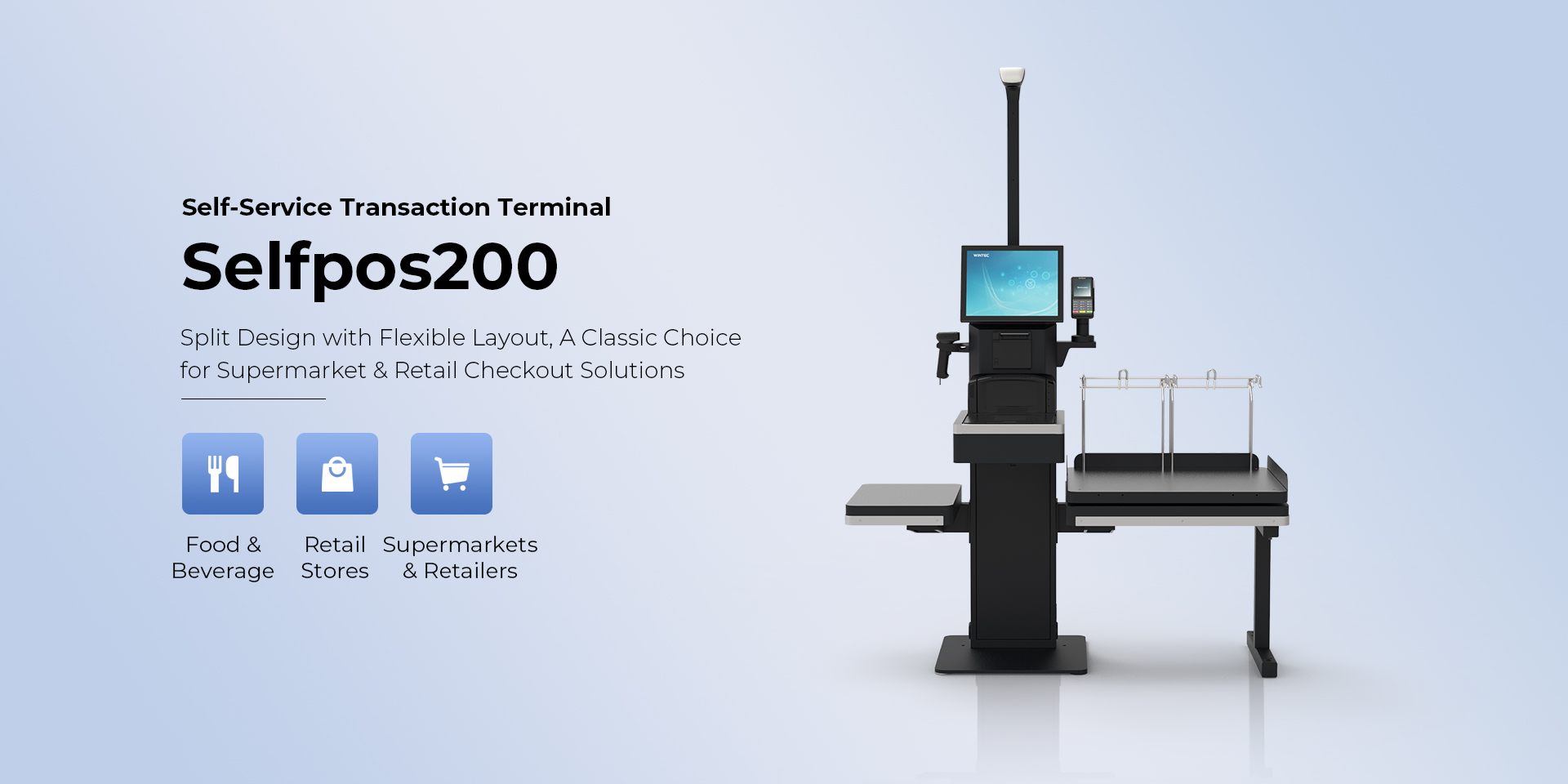

图层 1.jpg

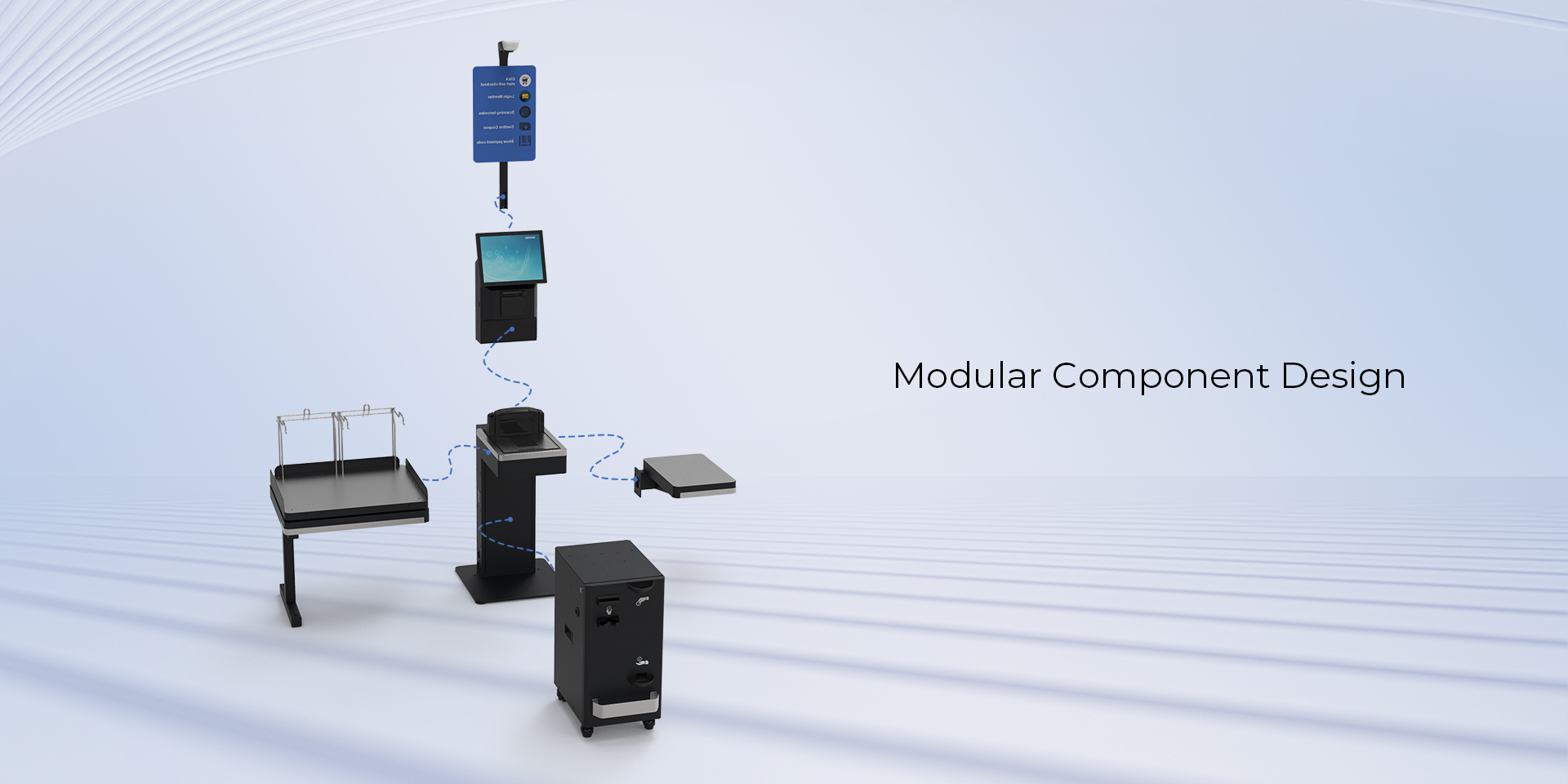

图层 2.jpg

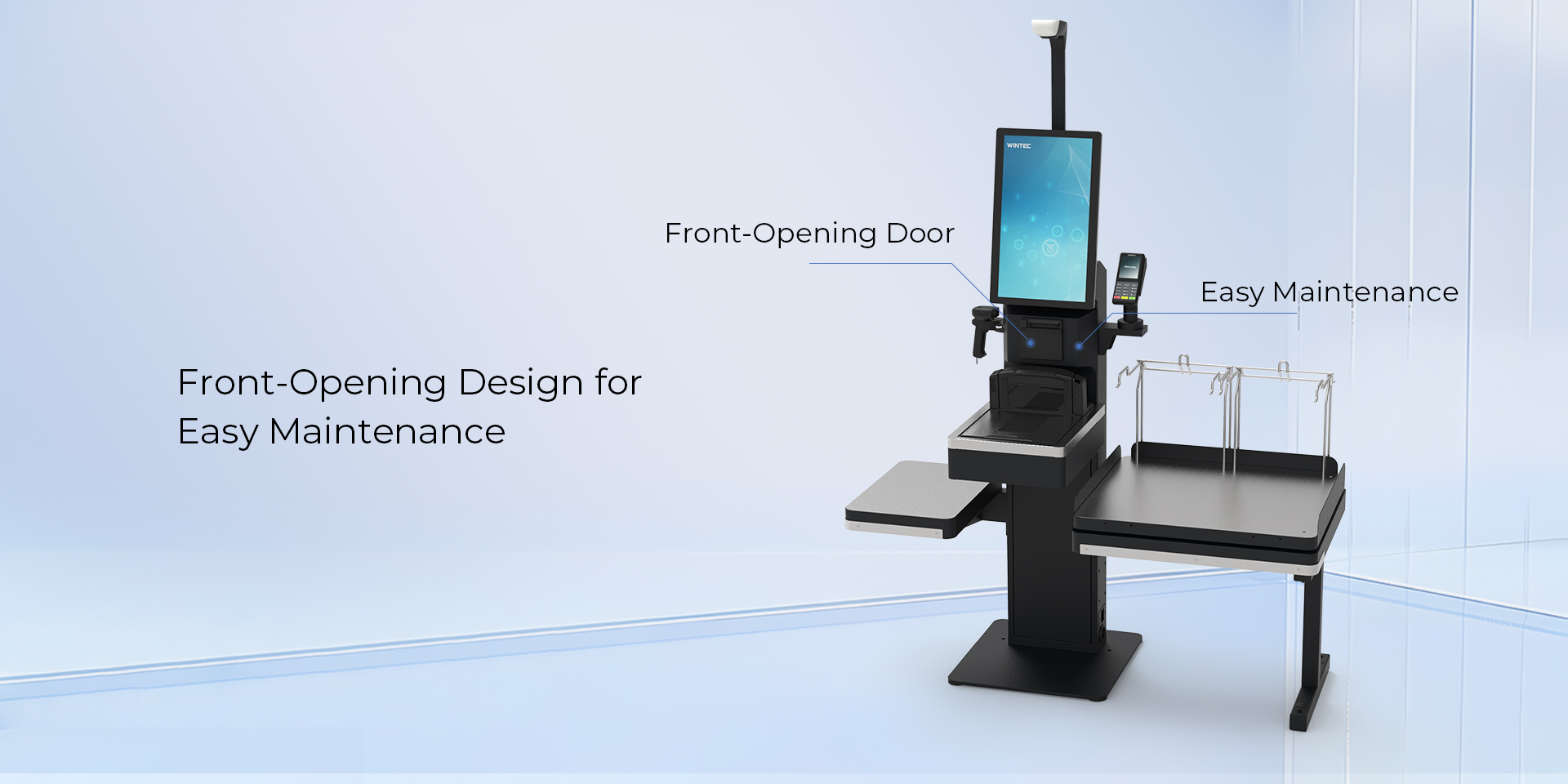

图层 3.jpg

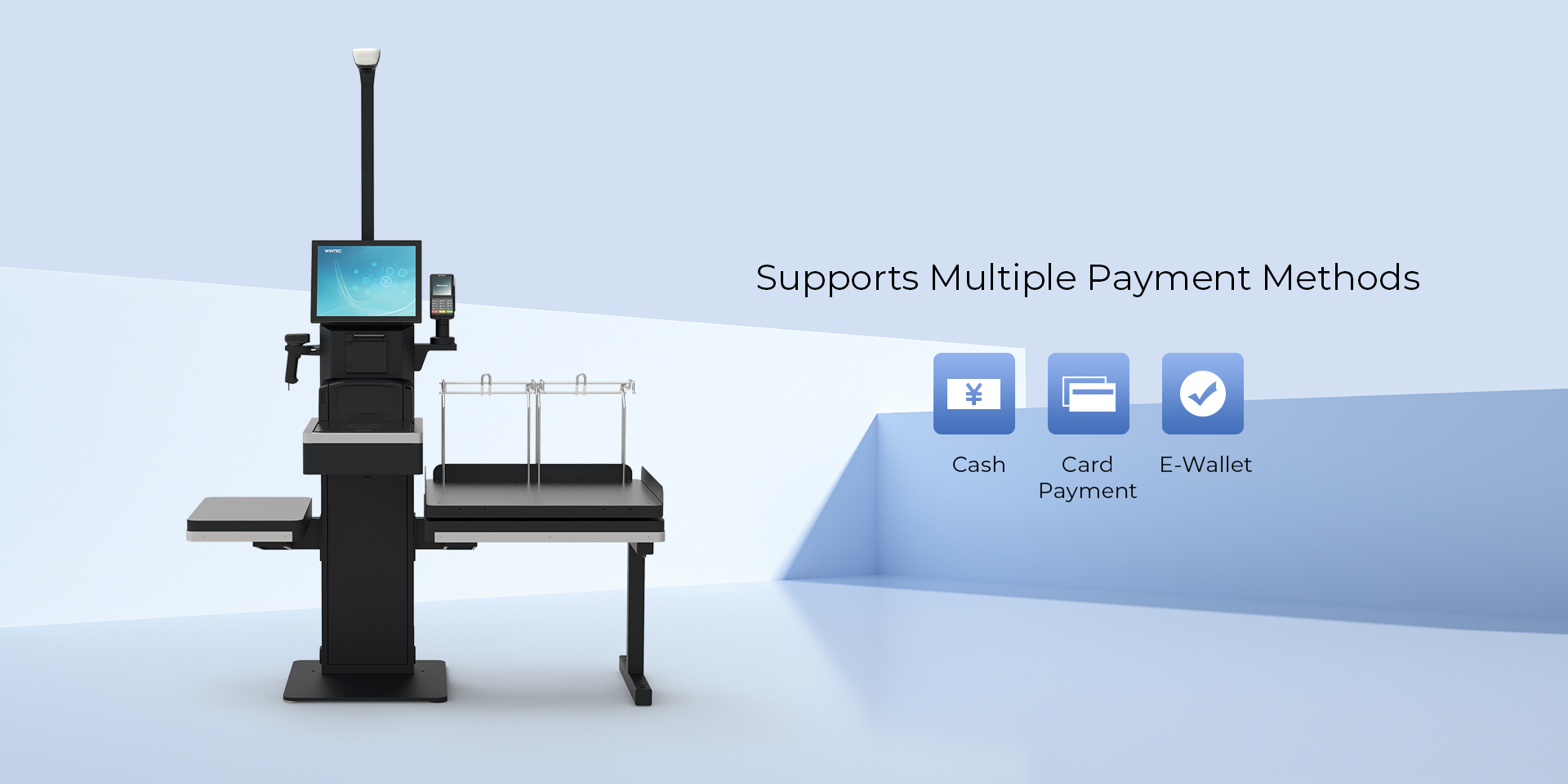

图层 4.jpg

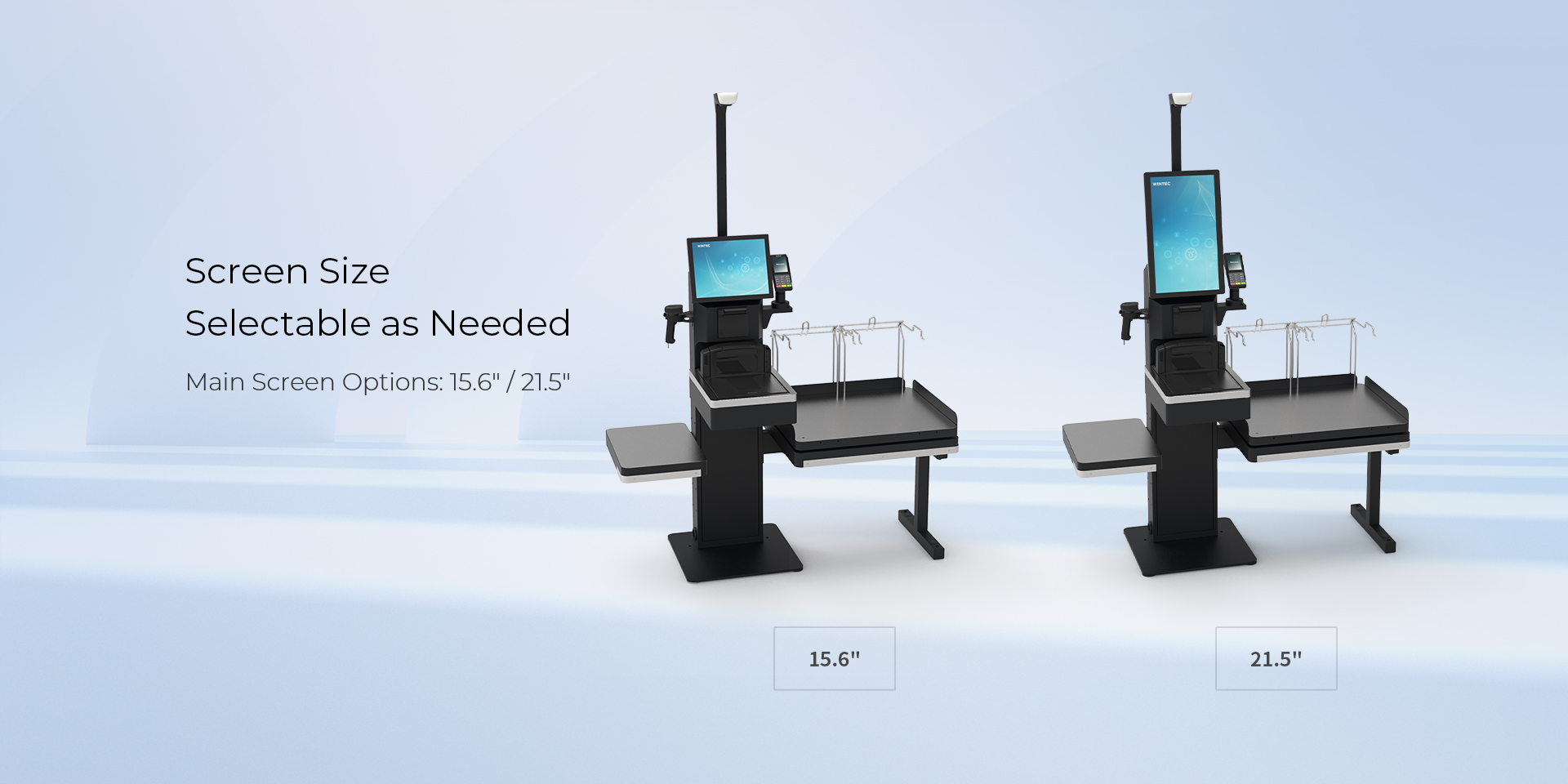

图层 5.jpg

Windows Android Specification
  • CPU

    "N95, 4 cores, 3.4GHz i3-1235U, 6 cores 2.5GHz, 4.4GHz (Turbo) i5-1235U, 10 cores 2.5GHz, 4.4GHz (Turbo)"

  • Memory

    8GB, up to 32GB

  • Hard disk

    128GB, up to 512GB

  • Display screen (main)

    "15"" LCD, 1024*768 (PCAP) 21.5"" LCD, 1920*1080/1366*768 (PCAP)"

  • Printer

    80mm thermal printer, support 80mm paper rolls

  • External interface

    6*USB(2*USB3.0), 1*24V P-USB，3*12V P-USB，5*RS232(2*RJ48、3*DB9), 1*12V DC_OUT，1*RJ45,1*DK,1*24V in,1*HDMI

  • Horn

    2*5W

  • Ethernet

    10/100/1000M

  • WiFi

    802.11 b/g/n/ac

  • Operating system

    Win11, Linux

  • Power supply

    "AC input 100~240V, 50-60Hz DC Output 24V/2.5A"

  • Overall dimensions

    "Main Cabinet: 700*540*991(mm) Side Cabinet: 780*670*390(mm) Cash Box: 560*417*912(mm)"

  • Scanner

    "MAG 939401,360°无刻度 MAG 939404,360°W/刻度"

  • Options

    MSR、IButton、RFID

  • CPU

    RK3568 Quad Core A55, 2.0GHz

  • Memory

    4GB

  • Hard disk

    32GB

  • Display screen (main)

    "15"" LCD, 1024*768 (PCAP) 21.5"" LCD, 1920*1080/1366*768 (PCAP)"

  • Printer

    80mm thermal printer, support 80mm paper rolls

  • External interface

    6*USB(2*USB3.0), 1*24V P-USB，3*12V P-USB，5*RS232(2*RJ48、3*DB9), 1*12V DC_OUT，1*RJ45,1*DK,1*24V in,1*HDMI

  • Horn

    2*5W

  • Ethernet

    10/100/1000M

  • WiFi

    802.11 b/g/n/ac

  • Operating system

    Android11

  • Power supply

    "AC input 100~240V, 50-60Hz DC Output 24V/2.5A"

  • Overall dimensions

    "Main Cabinet: 700*540*991(mm) Side Cabinet: 780*670*390(mm) Cash Box: 560*417*912(mm)"

  • Scanner

    "MAG 939401, 360° W/o scale MAG 939404, 360° W/ scale"

  • Options

    MSR, IBUTTON, RFID
